LeetCode 8 - String to Integer (atoi)

Table of Contents

• Problem Statement
• Using Finite State Machine (FSM)
• Conclusion

Problem Statement

Implement the myAtoi(string s) function, which converts a string to a 32-bit signed integer.

The algorithm for myAtoi(string s) is as follows:

1. Whitespace: Ignore any leading whitespace (“ “).

2. Signedness: Determine the sign by checking if the next character is ‘-‘ or ‘+’, assuming positivity if neither present.

3. Conversion: Read the integer by skipping leading zeros until a non-digit character is encountered or the end of the string is reached. If no digits were read, then the result is 0.

4. Rounding: If the integer is out of the 32-bit signed integer range [-231, 231 - 1], then round the integer to remain in the range. Specifically, integers less than -231 should be rounded to -231, and integers greater than 231 - 1 should be rounded to 231 - 1. Return the integer as the final result.

Using Finite State Machine (FSM)

Explanation

The myAtoi() function converts a string to an integer following the Finite State Machine (FSM) pattern. The process consists of five distinct states:

1. Ignore Leading Whitespaces
   • Skip all leading spaces using:

     while (i < n && s[i] == ' ') {
      ++i;
     }


   • Moves to the next state when a non-space character is found.
2. Determine the Sign
   • If s[i] == '+', set sign = 1.
   • If s[i] == '-', set sign = -1.
   • Move to the next character.
3. Convert Digits to an Integer
   • If isdigit(s[i]), accumulate the number:

     result = result * 10 + (s[i] - '0');


   • If a non-digit is found, stop processing.
4. Handle Overflow
   • Since result is of type long long, we check:

     if (result * sign > INT_MAX) return INT_MAX;
     if (result * sign < INT_MIN) return INT_MIN;


   • This clamps the number within the 32-bit integer range.
5. Return the Final Value
   • Multiply result by sign and return the integer.

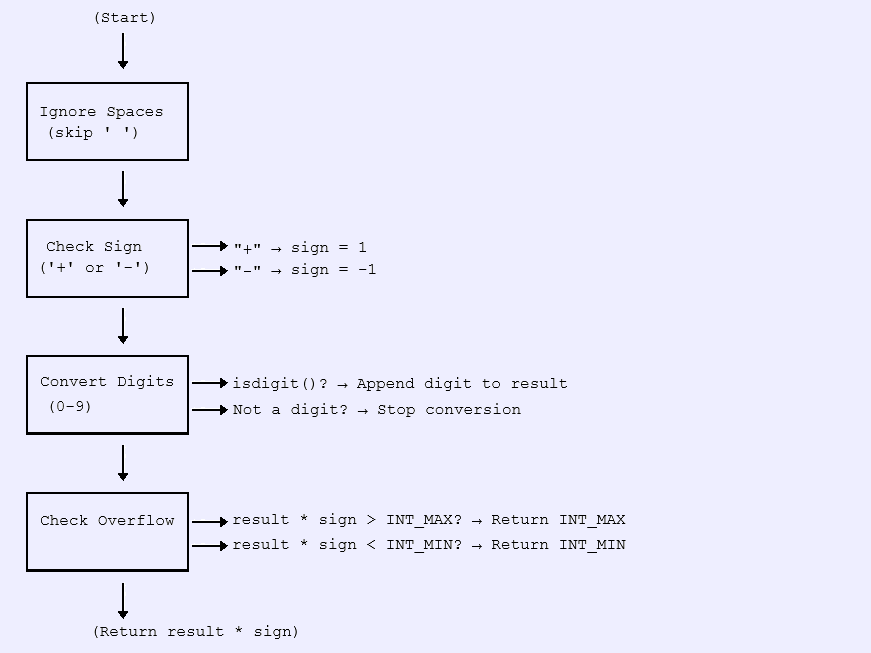

Finite State Machine (FSM) Diagram

class Solution {
    public:
        int myAtoi(string s) {
            int i = 0, n = s.length();

            while (i < n && s[i] == ' ') {
                ++i;
            }

            int sign = 1;
            if (i < n && (s[i] == '-' || s[i] == '+')) {
                sign = (s[i] == '-') ? -1 : 1;
                ++i;
            }

            long long result = 0;
            while (i < n && isdigit(s[i])) {
                result = result * 10 + (s[i] - '0');

                if (result * sign > INT_MAX) return INT_MAX;
                if (result * sign < INT_MIN) return INT_MIN;
                ++i;
            }
            return result * sign;
        }
    };

Conclusion

• Time Complexity: 𝑂(𝑛) — The function processes each character in the string at most once, and the while loops iterate through the string linearly, where n is the length of the input string.
• Space Complexity: 𝑂(1) — The function does not use extra space that grows with the input size, only using a few integer variables.

Source:

8. String to Integer (atoi)
